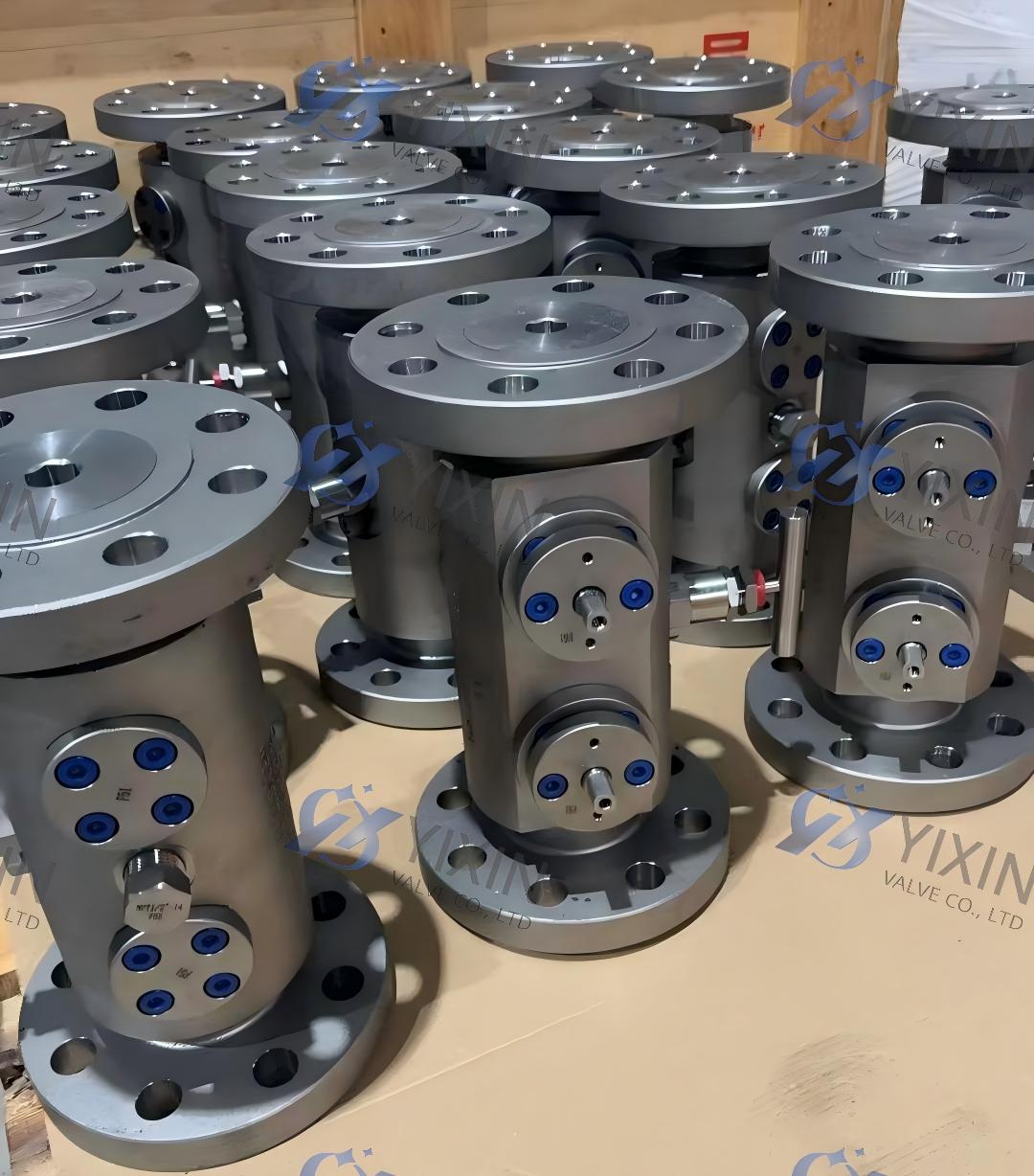

Integral Block and Bleed Valves – Comprehensive Overview

Integral Block and Bleed Valves are compact, high-integrity valve assemblies designed to isolate and vent process fluids in a single, integrated unit. Unlike traditional multi-valve arrangements, the block and bleed function is built directly into the valve body, reducing the number of potential leak paths, simplifying installation, and improving overall system safety. These valves are widely used in instrumentation systems, chemical processing, and energy production where precision and reliability are essential.

Typical Operating Conditions

Integral block and bleed valves are commonly applied in situations requiring both secure isolation and controlled venting:

• Instrumentation Lines – Isolating pressure transmitters, gauges, and switches for maintenance or calibration without shutting down the main process.

• Chemical Injection Systems – Preventing backflow and ensuring safe disconnection of injection lines.

• Hydraulic and Pneumatic Control Panels – Providing quick shutoff and venting in control circuits.

• Sampling Systems – Allowing safe withdrawal of process samples while maintaining system pressure integrity.

• Offshore and Subsea Equipment – Reducing weight and space requirements while handling harsh marine environments.

Material Selection and Performance Impact

Choosing the right material is critical to valve performance, longevity, and safety:

• Carbon Steel – Cost-effective option for non-corrosive, general-purpose applications.

• 316 Stainless Steel – Excellent corrosion resistance, suitable for aggressive process fluids and high-humidity environments.

• Duplex and Super Duplex Stainless Steel – Superior strength and resistance to chloride-induced stress corrosion cracking, ideal for marine and offshore installations.

• Nickel Alloys (Inconel, Monel, Hastelloy) – Exceptional resistance to high-temperature oxidation, sour gas service, and strong acids.

Material selection should consider compliance with relevant standards, such as NACE MR0175 for sour service, API, and fire-safe requirements for critical operations.

Types of Integral Block and Bleed Valves

• Single Block and Bleed – One isolation valve and one bleed valve for basic isolation and venting needs.

• Double Block and Bleed (Integral Design) – Two isolation points and one bleed valve for enhanced safety in hazardous processes.

• Manifold Type – Common in instrumentation, combining multiple block and bleed functions in a single, compact manifold body.

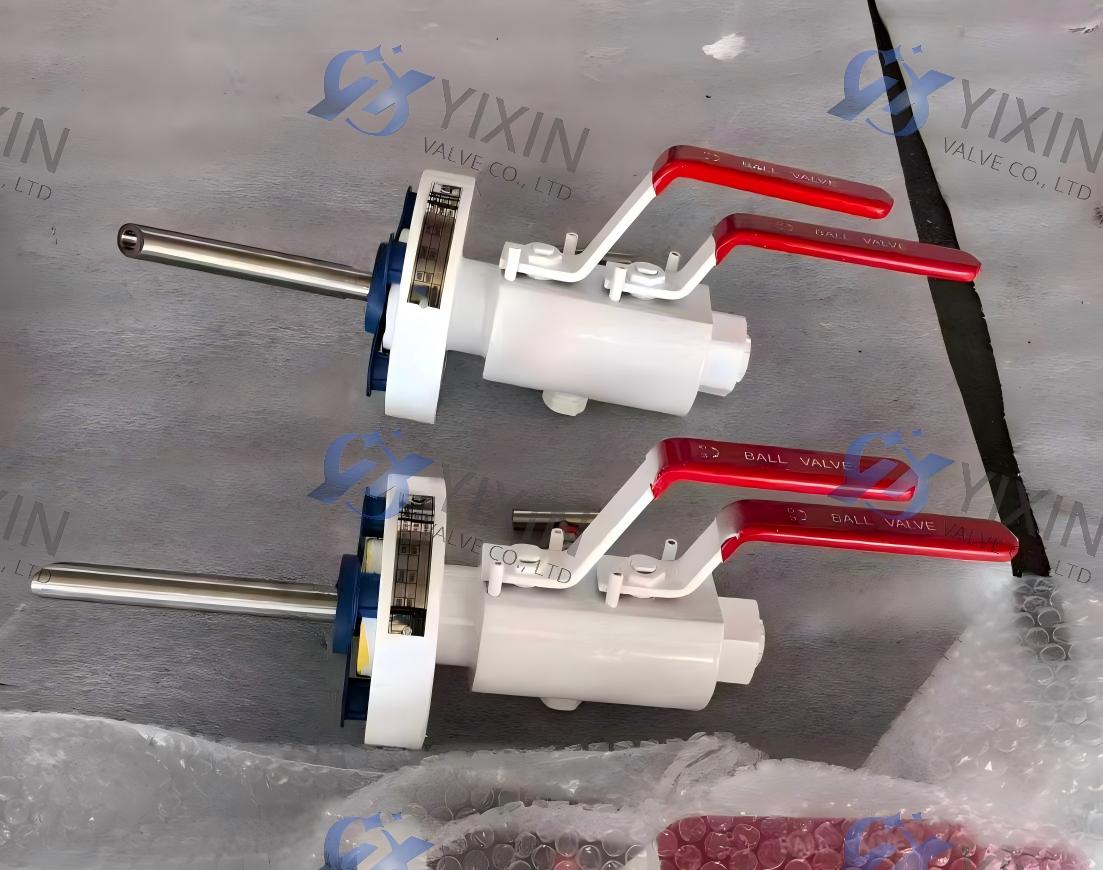

• Needle and Ball Configurations – Needle valves for precise control of small flow rates; ball valves for rapid shutoff and high-flow applications.

Advantages of the Integral Design

• Reduced Leak Paths – Fewer connections compared to traditional piping arrangements, enhancing system integrity.

• Compact and Lightweight – Saves valuable space in offshore platforms, skid-mounted systems, and control rooms.

• Faster Installation – Single-piece body minimizes alignment and assembly time.

• Improved Safety – Integrated design ensures reliable isolation and venting during maintenance and calibration.

An Integral Block and Bleed Valve is more than a space-saving component—it is a safety-critical device that ensures process control systems remain reliable and secure. Whether used for isolating instrumentation, controlling chemical injection, or sampling from high-pressure systems, selecting the right configuration and material ensures maximum performance under your specific operating conditions.
