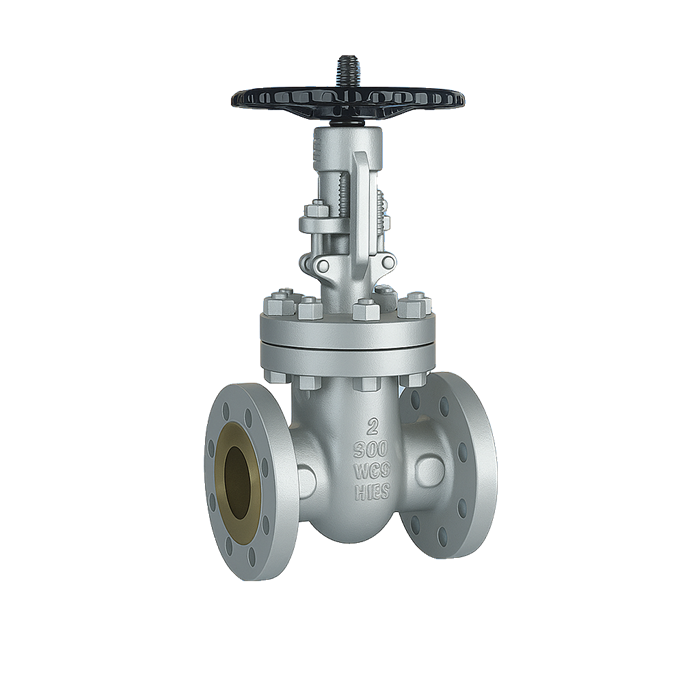

API Standard Cast Steel Gate Valve

API Standard Cast Steel Gate Valve – Comprehensive Overview

An API standard cast steel gate valve is a vital component in pipeline systems designed to provide reliable isolation and minimal pressure drop across a wide range of industrial applications. Built to comply with API (American Petroleum Institute) standards, these valves ensure consistency in design, materials, and performance, meeting the stringent requirements of the oil, gas, petrochemical, and power generation industries.

Material and Construction

• Cast Steel Body (WCB, WCC, LCB, LCC) – Offers high mechanical strength, durability, and excellent resistance to pressure and temperature fluctuations.

• Trim Materials – Commonly include stainless steel, alloy steels, or hardened metals to ensure longevity and corrosion resistance of the seating surfaces.

• Bolted Bonnet Design – Facilitates easier maintenance and inspection.

Cast steel manufacturing enables cost-effective production of large valves with reliable mechanical integrity, making them suitable for demanding pipeline services.

Applications and Typical Operating Conditions

• Oil & Gas Pipelines – Isolation of crude oil, refined products, and natural gas under varying pressure and temperature conditions.

• Petrochemical Plants – Handling process fluids in cracking, distillation, and reforming units.

• Power Generation – Steam, water, and cooling system isolation with high temperature and pressure endurance.

• Water Treatment and Distribution – Reliable shutoff for potable and industrial water systems.

• Marine and Offshore Facilities – Designed to withstand corrosive seawater environments and mechanical stresses.

Design Features

• Rising Stem or Non-Rising Stem Options – Adaptable to installation space and operational preferences.

• Solid Wedge or Flexible Wedge Gate – Flexible wedges accommodate slight misalignments and improve sealing.

• Fire-Safe Construction – Meets API 6FA or equivalent standards to maintain sealing during fire exposure.

• Pressure Ratings – Typically conforming to API 600, ranging from Class 150 up to Class 2500.

• Face-to-Face Dimensions – Standardized for easy installation and replacement.

Advantages of API Standard Cast Steel Gate Valves

• Reliable Tight Shutoff – Wedge design ensures effective sealing against backflow.

• Durability Under High Pressure and Temperature – Cast steel body withstands harsh service conditions.

• Ease of Maintenance – Bolted bonnet and standardized parts simplify repairs and overhauls.

• Wide Range of Sizes and Pressure Classes – Suitable for diverse industrial applications.

• Global Compliance – Adherence to API standards assures compatibility with international pipeline systems.

An API standard cast steel gate valve is engineered to provide dependable isolation and long service life in critical pipeline and process applications. Its compliance with API specifications guarantees performance, safety, and interoperability across various industries worldwide.
