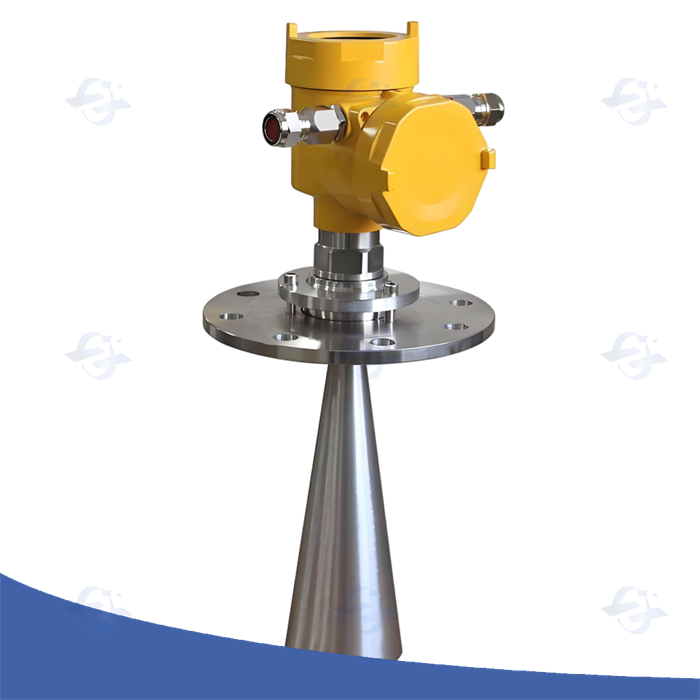

Radar level gauge

Level Gauges

※ Applications: Solid materials, particles, and dust
※ Measuring range: 0-30 meters
※ Process connection: Flange thread
※ Media temperature: -40-250°C
※ Process pressure: Atmospheric pressure
※ Accuracy: -+15 mm
※ Frequency: 26 GHz
※ Explosion-proof rating: Exia II C T6 Ga
※ Protection rating: IP67
※ Signal output: 4-20 mA, HART (two-wire, four-wire), RS485, Modbus

yixin@yixin-valve.cn

Inquire Now

Description

Radar Level Gauge – Overview

A radar level gauge is a cutting-edge, non-contact measurement device that uses microwave radar pulses to accurately monitor liquid and solid levels in tanks, silos, and vessels. Renowned for its reliability, precision, and ability to perform under challenging conditions, it provides continuous, real-time level data critical for efficient process control.

Key Features and Design

Non-Contact Measurement
Uses microwave radar signals, avoiding direct contact with the medium, thus minimizing wear and contamination risks.
High Accuracy & Stability
Delivers precise measurements regardless of dust, vapor, foam, or extreme temperature and pressure variations.
Wide Application Range
Suitable for liquids, slurries, powders, and bulk solids across many industrial sectors.
Robust Construction
Housed in durable stainless steel or coated materials with high ingress protection (IP66/IP67), designed to withstand harsh environments.
Extended Measurement Range
Capable of measuring levels up to 70 meters or more, depending on model and antenna type.
Advanced Output Options
Supports analog (4-20mA), digital (HART, Modbus, Profibus), and wireless communication protocols for integration with control systems.

Typical Applications

Oil & Gas storage tanks and process vessels
Chemical and petrochemical plants handling corrosive fluids
Water and wastewater treatment facilities
Food and beverage production requiring hygienic monitoring
Mining and bulk material storage silos

Advantages

Performs reliably in dusty, vapor-laden, or turbulent environments
Maintenance-free operation with no moving parts
Enhances safety with non-contact design
Multiple antenna options for varied installation needs
Enables remote monitoring and seamless automation integration

A radar level gauge is an ideal solution for industries seeking precise, durable, and maintenance-friendly level measurement technology to optimize operations and safety.

With over 15 years of professional expertise, YIXIN has been specializing in manufacturing industry-specific flow control solutions – particularly industrial valves – catering to sectors such as oil & gas, chemical engineering, power stations, water supply, and energy.
Equipped with state-of-the-art facilities and a comprehensive manufacturing system, YIXIN delivers high-quality industrial valves, including pneumatic actuated ball valves, DBB valves, and top entry ball valves.

We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.

Previous
Ultrasonic level gauge

Next

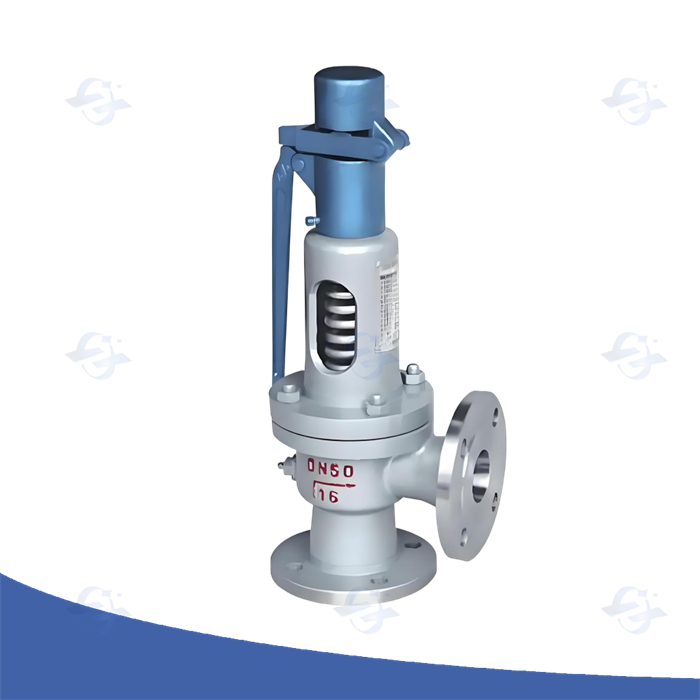

Spring-Loaded Safety Valve

GET A QUOTE

Whether you have any questions about our products, please feel free to contact us, we will reply as soon as possible.

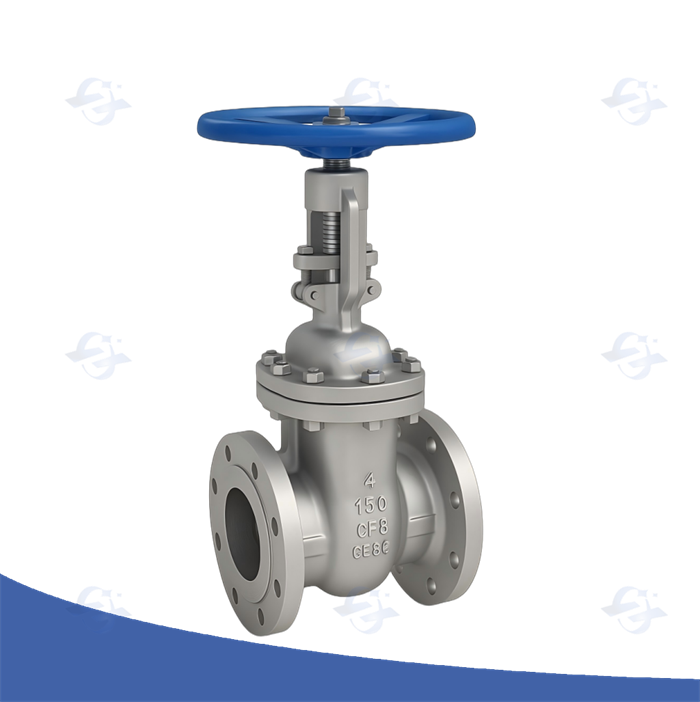

API Standard Cast Steel Gate Valve

API Standard Cast Steel Gate Valve – Comprehensive Overview An API standard cast steel gate valve is a vital component in pipeline systems designed to provide reliable isolation and minimal pressure drop across a wide range of industrial applications. Built to comply with API (American Petroleum Institute) standards , these valves ensure consistency in design, materials, and performance, meeting the stringent requirements of the oil, gas, petrochemical, and power generation industries. Material and Construction Cast Steel Body (WCB, WCC, LCB, LCC) – Offers high mechanical strength, durability, and excellent resistance to pressure and temperature fluctuations. Trim Materials – Commonly include stainless steel, alloy steels, or hardened metals to ensure longevity and corrosion resistance of the seating surfaces. Bolted Bonnet Design – Facilitates easier maintenance and inspection. Cast steel manufacturing enables cost-effective production of large valves with reliable mechanical integrity, making them suitable for demanding pipeline services. Applications and Typical Operating Conditions Oil & ...

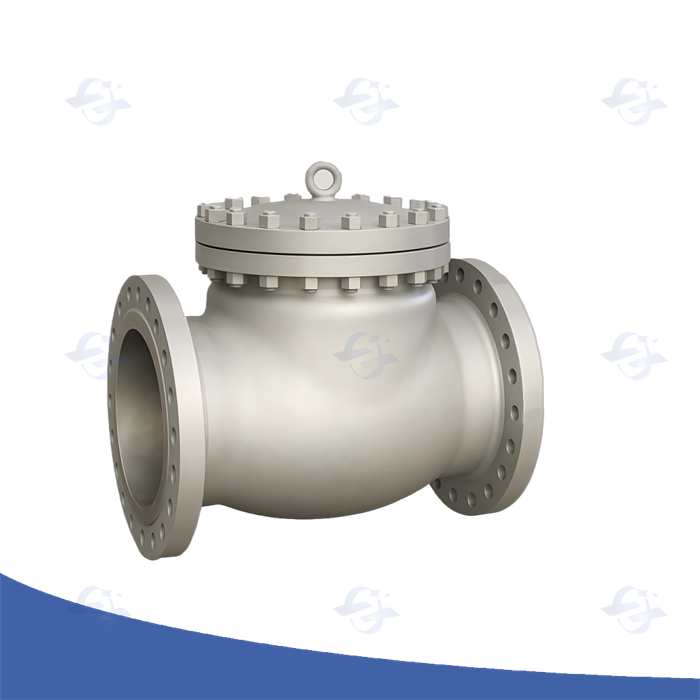

API Standard Swing Check Valve

API Standard Swing Check Valve – Overview An API standard swing check valve is a non-return valve designed in accordance with the American Petroleum Institute’s (API) specifications, ensuring consistent quality, performance, and safety across a range of industrial applications. This valve type automatically prevents backflow by utilizing a swinging disc mechanism that opens under forward flow and closes when flow reverses, protecting pumps, compressors, and piping systems. Key Design Features API Compliance Manufactured to API 6D or API 594 standards for precise dimensional accuracy, performance reliability, and compatibility with global pipeline systems. Swing Disc Mechanism The hinged disc swings away from the seat during forward flow and returns to the closed position under reverse flow or gravity. Material Options Available in carbon steel, stainless steel, alloy steel, or duplex materials to suit various pressure, temperature, and corrosive environments. End Connections Flanged, butt weld, and socket weld ends for seamless integration into pipeline networks. Pressure and Temperature ...

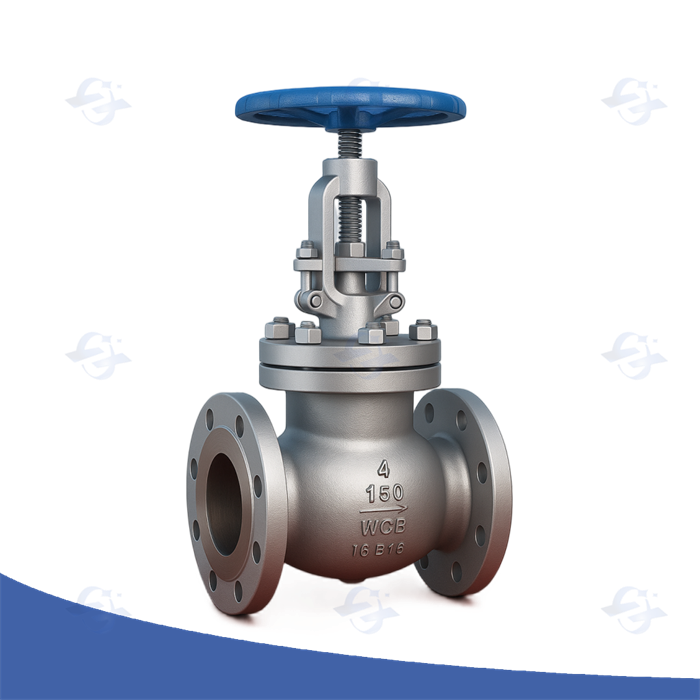

API Standard Flanged Globe Valve

API Standard Flanged Globe Valve – Comprehensive Overview An API standard flanged globe valve is a crucial component in fluid control systems, designed to provide precise throttling and reliable shutoff in various industrial applications. Manufactured to meet API (American Petroleum Institute) standards , these valves ensure consistent quality, durability, and performance, particularly in oil & gas, petrochemical, power generation, and water treatment industries. Construction and Material Flanged End Connections : Designed according to ASME B16.5 standards, the flanged ends facilitate secure, leak-proof connections to piping systems, enabling easy installation and maintenance. Robust Body Materials : Typically constructed from cast steel (WCB, WCC), stainless steel, or alloy steels, offering excellent mechanical strength and corrosion resistance across a range of service conditions. Trim Components : Equipped with durable seating surfaces, often stainless steel or hardened alloys, to ensure tight shutoff and long service life. Bonnet Types : Bolted bonnet or pressure-seal bonnet options are available depending on pres ...

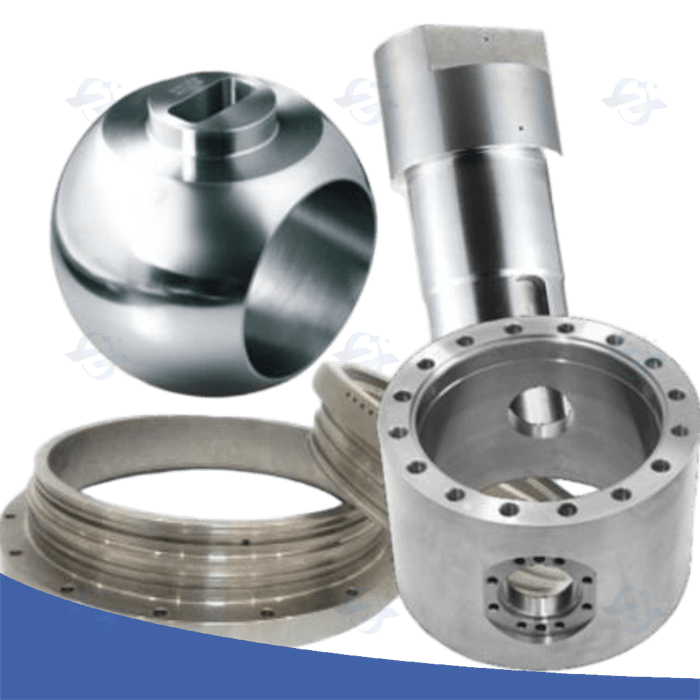

Valev Parts

Main active: machining below Size: Main Material (forging): The types of BALL Valve we can machine: Most of Forging products: BODY, CONNECTOR, COVER, STEM, SEAT, BALL, FLANGE, SUPPORT PLATE, FORGING WEDGE of Gate Valve, etc... NPS 1/2" to 36" DN 15 to DN900 A105,LF2,F304,F316, Duplex,Super Duplex, F6A,INC.625, INC.825, INC.718, MONEL,TITANUNM,etc... Floating, Trunnion, 3-way, Top-entry, 2-pieces, 3-pieces, Flanged, DOUBLE BLOCK & BLEED, etc ...

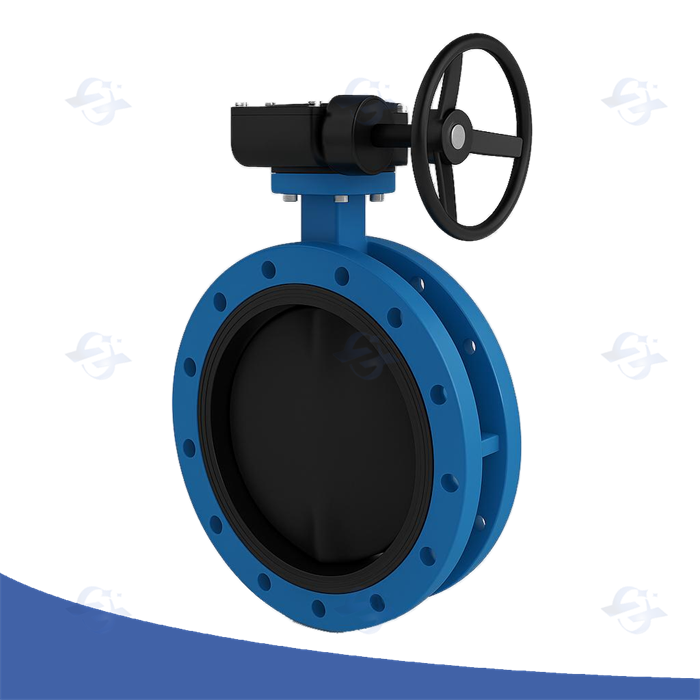

Flanged Butterfly Valve
